MULTY SYSTEM





is an ideal plastic filing system based on standard modules which can be interlocked and stacked on top of each other.

The basic system is around four drawer sizes which can be interchanged in the ratio of 1 : 2 : 3 : 4. all cabinets can be supplied with / without central locking system.

Applications

Due to the system being modular in nature, these systems are used in a large variety of applications like Offices, Hospitals, Homes, Electronics, Engineering and Textile Industries



Please Note : Colours shown here are similar and not actual .product colours.



MULTY  SYSTEM - COMBINATIONS

MS-3L with 3 D3 drawers MS-4L with 4 D4 drawers MS-6 Lwith 6 D2 drawers MS-12 with 12 D1 drawers

All cabinets are provided with name plate which can be changed. All cabinets can be supplied with or without lock.

MULTY SYSTEM - DRAWERS

D1 Size: 360mm X 265mm X 16mm

D2 Size: 360mm X 265mm X 39mm

D3 Size: 360mm X 265mm X 62mm

D4 Size: 360mm X 265mm X 87mm

Top




MULTY  SYSTEM - FEATURES

Central Locking Stopper Indicator Interlocking Clips

Central Locking System is provided OPTIONALLY. Product Code for cabinets without  lock will be MS3, MS4, MS6  & MS12

Special Stopper is provided to stop the drawers when opened fully. To remove the drawer from the cabinet one has to lift the drawer up.

Name Plate can be changed as required by pushing out the paper



Interlocking clips are provided with each cabinet so that two or more Multy Systems can be interlocked with each other.

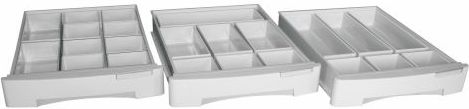

CONTAINERS FOR MULTY  SYSTEM

The drawers of Multy System can also have Utility Containers in three sizes for storing of small parts. These containers  can be also used in different combinations as shown in the image

Size of containers : C1=82 X 82 X 55mm,     C2=17 X 82 X  55mm,        C3=255 X 82 X 55mm.

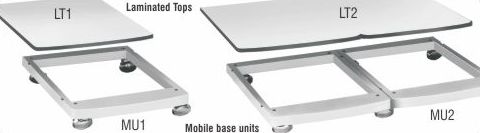

MOBILE UNIT AND LAMINATED TOPS FOR MULTY SYSTEMS



The Multy Systems can be placed on a base unit MU1 or MU2 with castors to make them mobile and the top of the cabinet can be fitted with a laminated top Model LT-1 & LT-2 as shown

To Download Catalog Click Here
