PANDA PIGEON HOLE SHELVING SYSTEMS

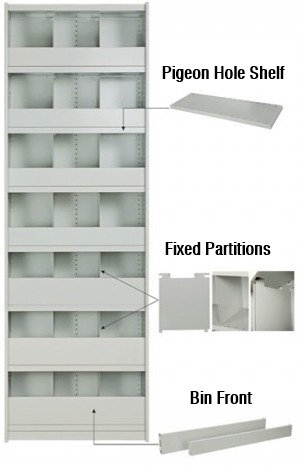

Panda Pigeon Hole Shelving System :

are based on our standard 300 mm & 400 mm deep roll post shelving systems which have to be used with special shelves, shelf partitions and bin fronts.

The system is modular in nature and is adjustable to your changing needs of storage.

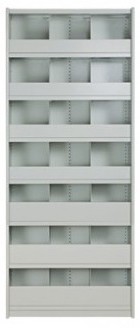

Panda Pigeon Hole Shelving System Shelf :

These special shelves are made from 0.8mm CRCA steel duly powder coated in RAL 7035 colour.
Art No : ASUS 300 PH

SHELF

Shelf Size in mm

UDL
Length Width Height

ASUS 300 PH

300 900 30 90 Kg

ASUS 400 PH

400 900 30 80 Kg

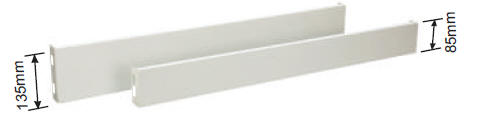

Panda Pigeon Hole Shelving System Bin Front :

These special bin fronts are available in two heights of 85 mm and 135mm.

They are made from 0.8mm CRCA steel duly powder coated in RAL 7035 colour.

These bin fronts are designed to be used with regular shelving systems and with panda pigeon hole shelving systems.

Art No : ASUBF 85
Dimensions : 85mm (H) x 900mm (W)
Art No. : ASUBF 135
Dimensions : 135mm (H) x 900mm (W)




Panda Pigeon Hole Shelf Fixed Partitions :

These special partitions Art No ASUSFP 300 PH & ASUSFP 400 PH are made from 0.8mm CRCA steel duly powder coated in RAL 7035 colour.

The partitions are designed to be used with panda pigeon hole shelves only. As per the design of the partition they get lodged in the slots which are on the lower end of the top shelf and on the shelf base on which they sit at the same time by which they cannot get dislodged from their location easily giving well defined pigeon hole locations for storing products.

The height of the partition is 295 mm and using these partitions the useable area between two shelves is 270 mm.




Panda Pigeon Hole Shelving Systems of depth 300mm & 400mm are ideally used for storing small parts in fixed locations without Bins.

Shelving Unit Size :
1275mm (H) 900mm (W) 300mm (D)
Shelving Unit Size :
1875mm (H) 900mm (W) 300mm (D)
Shelving Unit Size :
2175mm (H) 900mm (W) 300mm (D)
APH 1 APH 2 APH 3
300 mm Deep Shelving Unit Consists of 300 mm Deep Shelving Unit Consists of 300 mm Deep Shelving Unit Consists of

1 Set of ASUB 123 Shelving Body.
5 Nos Pigeon Hole Shelves
Art No : ASUS 300 PH
8 Nos Pigeon Hole Shelf Partitions
Art No : ASUSFP 300 PH
2 Nos Bin Front Small 85mm
Art No : ASUBF 85
2 Nos Bin Front Big 135mm
Art No : ASUBF 135
1 No Kick Plate
Art No : ASUKP

1 Set of ASUB 183 Shelving Body.
7 Nos Pigeon Hole Shelves
Art No : ASUS 300 PH
12 Nos Pigeon Hole Shelf Partitions Art No : ASUSFP 300 PH
3 Nos Bin Front Small 85mm
Art No : ASUBF 85
3 Nos Bin Front Big 135mm
Art No : ASUBF 135
1 No Kick Plate
Art No : ASUKP

1 Set of ASUB 213 Shelving Body.
8 Nos Pigeon Hole Shelves
Art No : ASUS 300 PH
14 Nos Pigeon Hole Shelf Partitions Art No : ASUSFP 300 PH
4 Nos Bin Front Small 85mm
Art No : ASUBF 85
3 Nos Bin Front Big 135mm
Art No : ASUBF 135
1 No Kick Plate
Art No : ASUKP



APH 4 APH 5 APH 6
400 mm Deep Shelving Unit Consists of 400 mm Deep Shelving Unit Consists of 400 mm Deep Shelving Unit Consists of

1 Set of ASUB 124 Shelving Body.
5 Nos Pigeon Hole Shelves
Art No : ASUS 400 PH
8 Nos Pigeon Hole Shelf Partitions
Art No : ASUSFP 400 PH
2 Nos Bin Front Small 85mm
Art No : ASUBF 85
2 Nos Bin Front Big 135mm
Art No : ASUBF 135
1 No : Kick Plate
Art No : ASUKP

1 Set of ASUB 184 Shelving Body.
7 Nos Pigeon Hole Shelves
Art No : ASUS 400 PH
12 Nos Pigeon Hole Shelf Partitions Art No : ASUSFP 400 PH
3 Nos Bin Front Small 85mm
Art No : ASUBF 85
3 Nos Bin Front Big 135mm
Art No : ASUBF 135
1 No Kick Plate
Art No : ASUKP

1 Set of ASUB 214 Shelving Body.
8 Nos Pigeon Hole Shelves
Art No : ASUS 400 PH
14 Nos Pigeon Hole Shelf Partitions Art No : ASUSFP 400 PH
4 NosBin Front Small 85mm
Art No : ASUBF 85
3 Nos Bin Front Big 135mm
Art No : ASUBF 135
1 No Kick Plate
Art No : ASUKP

Pigeon Hole Shelf Partitions and Shelf Bin fronts can be ordered as per your requirement.
