TUFF LOUVRE PANEL STANDS





ALKON TUFF STAND

TUFF LOUVRE PANEL : ATSLP 914 x 610
These Louvre panels are made from 1.5mm (T) CRCA steel powder coated in Light Grey RAL 7035 colour.

These louvre panels are designed to be fitted on ALKON Tuff Single or Double sided Stands and Alkon Tuff Trolley.

Dimension : 914mm (W) x 610mm (H).

Colour : Light Grey RAL 7035.

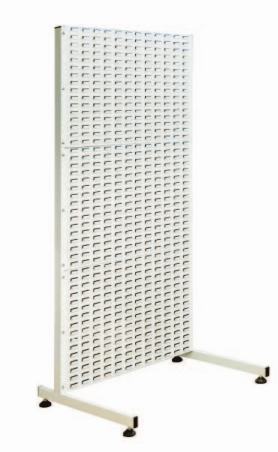

ALKON TUFF SINGLE SIDED STAND : ATSSS

These stands are made from M.S. Steel Rectangular Pipes of size 25mm (L) x 50mm (W) x 1.6mm (T).

These stands are used to mount three panels of ATSLP 914mm (W) X 610mm (H) on single side.

Dimension : 915mm (W) x 710mm (D) x 1925mm (H)

Colour : Light Grey RAL 7035.

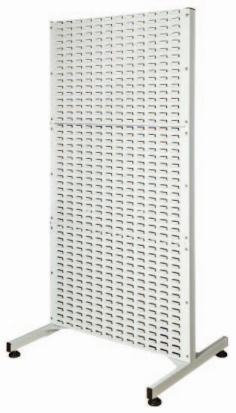

ALKON TUFF DOUBLE SIDED STAND : ATDSS

These stand are made from M.S. steel Rectangular pipes of size 25mm (L) x 50mm (W) x 1.6mm (T)

These stands are used to mount three numbers of ATSLP 914mm (W) X 610mm (H) on each side.

Dimension : 915mm (W) x 710mm (D) x 1925mm (H)
Colour : Light Grey RAL 7035

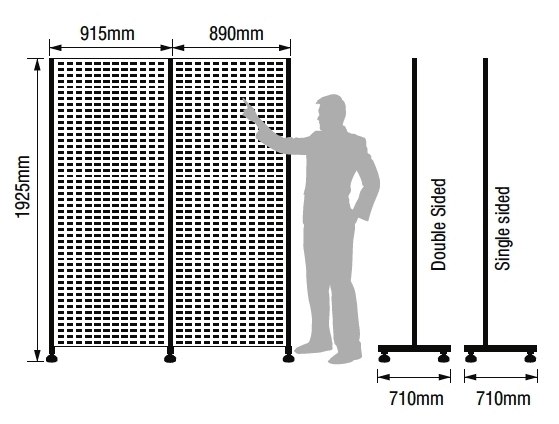

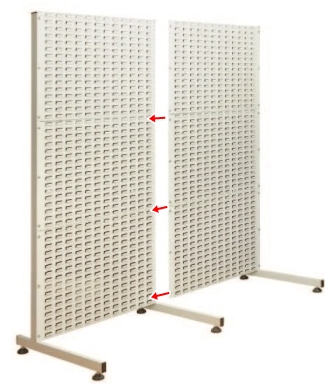

ALKON TUFF ADD ON SYSTEMS



These Louvre stands provide an efficient way to organise small parts bins (Supra Bins, Hippo Bins, Rhino Bins, Bull Bins and Koala Bins) providing providing a high density storage solution whilst maintaining an efficient way to retrieve items from the picking face.

These units can be configured as stand alone bays or built in runs using a starter and extension bays in either single or double sided formats.


For the add on bay the width increases by 890mm per add on depth and height remains the same.

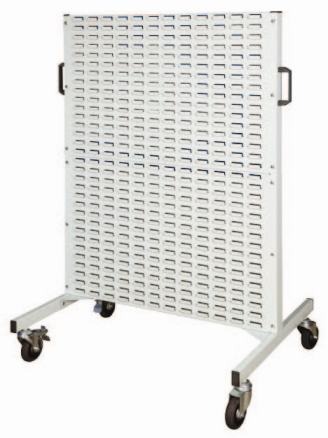

ALKON TUFF TROLLEY : ATTB



Alkon Tuff Trolleys are made from M.S. Steel Rectangular Pipes of size 25mm (L) x 50mm (W) x 1.6mm (T) duly powder coated in Light Grey RAL 7035 colour.

Trolleys save time travelling to items stored in static shelving installations by putting all your small parts storage bins onto the trolley.

Trolley can be used single sided or double sided as per requirement.

Each trolley comes fitted with ergonomic plastic handles so that the trolley can be comfortably moved.

The trolley is fitted with heavy duty swivel castors that offer ease of movement. Two of the castors are braked, which means the trolley can be secured when not in use.

Dimension : 995mm (W) x 710mm (D) x 1430mm (H)
(Considering castor wheel extension width wise inclusive of handle)

Colour : Light Grey RAL 7035.

Art No : ATTB
Trolley without louvre panels and bins.
(Order 2 Nos ATSLP 914mm (W) x 610mm (H) for single side use and 4 Nos ATSLP 914mm (W) x 610mm (H) for double side use separately).



For Supra Bins on Tuff Louvre panels click here For Rhino Bins on Tuff Louvre panels click here For Hippo Bins on Tuff Louvre panels click here For Bull Bins on Tuff Louvre panels click here For Koala Bins on Tuff Louvre panels click here

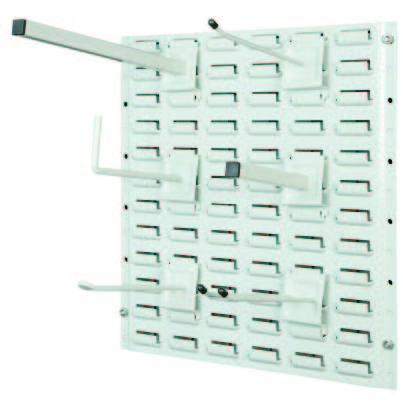

LOUVRE PANEL SPIGOTS

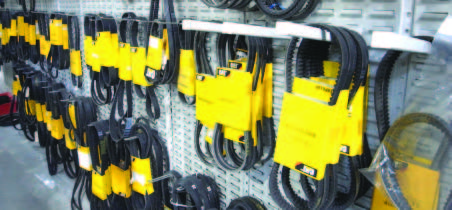

Louvre Panel Spigots are available in 8 different sizes. These spigots are ideal for hanging a variety of parts such as fan belts, gaskets, hoses, automotive parts and packaged items.








Art No. SP1 Art No. SP5
Art No. SP2 Art No. SP6
Art No. SP3 Art No. SP7
Art No. SP4 Art No. SP8
Art No Description
SP1

Single Prong 200mm (L) x 6mm (D) Rod

SP2

Double Prong 200mm (L) x 6mm (D) Rod

SP3

Pipe Hook 150mm (L)
(20mm x 20mm x 1.5mm pipe section)

SP4

Pipe Hook 250mm (L)
(25mm x 25mm x 1.5mm pipe section)

SP5

Pipe Hook 300mm (L)
(20mm x 20mm x 1.5mm pipe section)

SP6

Steel Hook 200mm (L) x 9.5mm (D) Rod

SP7

Euro Hook 200mm (L) x 6mm (D) Rod

SP8

Chrome Wire Hook 150mm (L) x 5mm (D)

All dimensions in mm approx.
