Supra Bins

COLOURS AVAILABLE

FOR SUPRA BINS SB-1 TO SB-6

RED BLUE GREY GREEN YELLOW

FOR SUPRA BINS SB-7

RED BLUE

Color As Shown in Image

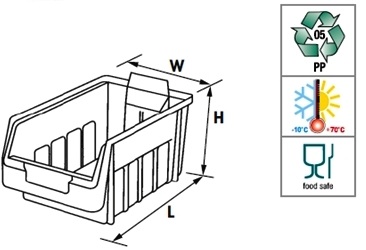

Art No.

Depth

Width

Height

Red(small)

SB-1

125mm

100mm

60mm

Green(small)

SB-2

170mm

100mm

85mm

Blue

SB-3

220mm

130mm

125mm

Green(big)

SB-4

290mm

178mm

143mm

Yellow

SB-5

290mm

363mm

145mm

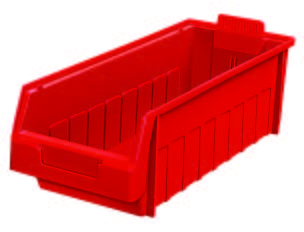

Grey

SB-6

440mm

180mm

145mm

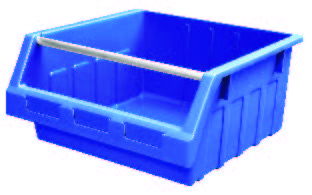

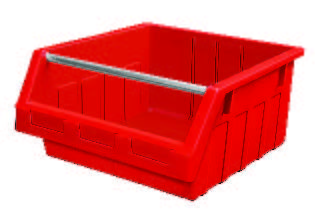

Red(big)

SB-7

435mm

400mm

215mm

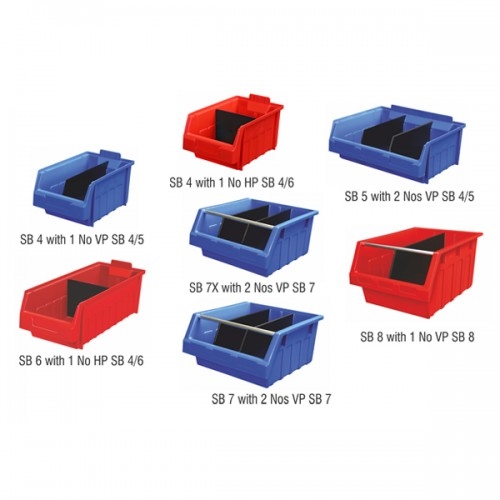

Type	Art No
Horizontal Partition for SB4 & SB6	SB4-6 HP
Vertical Partition for SB4 & SB5	SB4-5 VP
Vertical Partition for SB6	SB-6 VP
Vertical Partition for SB7	SB-7 VP

Made from powder coated steel in light gray color. Available in four sizes. Can be easily fitted on walls or on special stands provided. Can be placed on a table with two steel-support stand i.e. Louvre Panel Stand Art No. LPS.

Art No. SB/LP3	Art No. LP1 fitted on LPS.	Art No. FSS/L.

Number of Bins per Louver Panel
	SB1	SB2	SB3	SB4	SB5	SB6	SB7
LP1	24	16	9	6	3	6	2
LP2	32	20	12	8	4	8	3
LP3	48	32	18	12	5	12	4
LP6	96	64	36	24	10	24	8

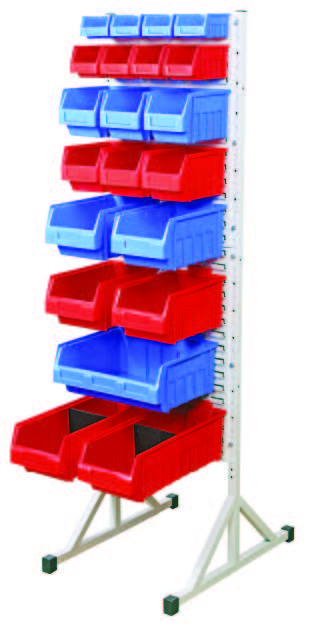

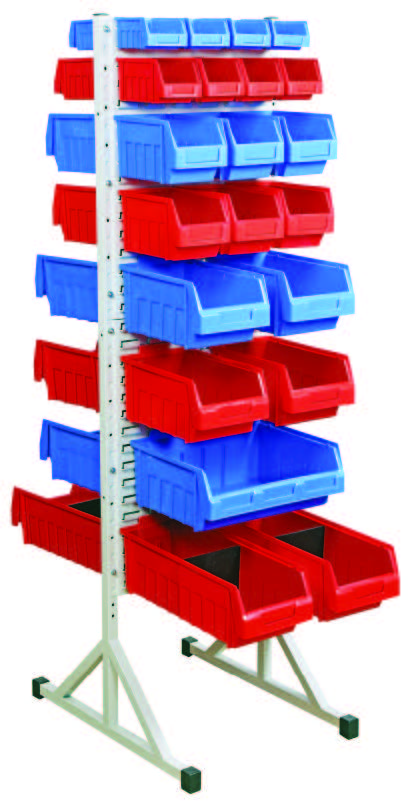

DIFFERENT COMBINATIONS WITH FSS & LOUVERE PANELS

FSS/L/2	FSS/L	FSS/L/3
Free Standing Stand FSS/L/2 can be fitted with four numbers of LP2 Louvre Panels on each side	Free Standing Stand FSS/L can be fitted with two numbers of LP2 Louvre Panels on each side	Free Standing Stand FSS/L can be fitted with six numbers of LP2 Louvre Panels on each side

Two tier system with four louver panels of size SB LP2 in each tier. Easy rotating on a thrust bearing when loaded. Each tier rotates independently. Full epoxy powder coated with sturdy steel base. Can hold different sizes of bins according to your requirements. Rotary stand is supplied without louver panels. Order louver panels separately.
Dimensions: Height 1420mm. Diameter of rotation: 1000mm	Art No. SFRS.

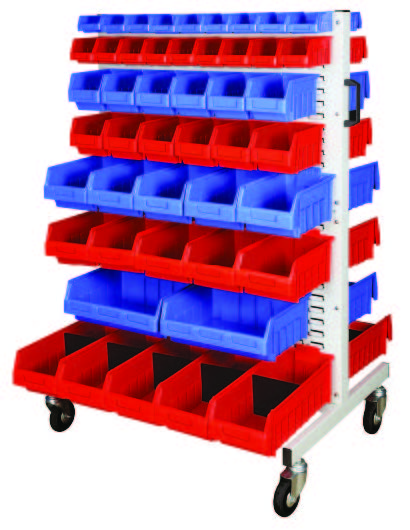

	Can be used single side or double side as per requirements. Ideal for components storage and transfer to assembly or production areas. Unit comprises of base unit with aluminum chequered top plate fitted with castors and frame on which two louvre panels of size LP2 can be fitted on each side. Epoxy powder coated in light gray color, easy assembly and push-pull handle on both sides.
Art No. SFT	Overall dimensions: L 970mm X B 600mm X H 1100mm.

ALKON TOOL TRAY Art No: ATT

Multipurpose Tool Tray

For Screwdrivers, Files, Pliers, Spanners Etc.,
Can be screwed in walls, workstations etc.
Can be used on Louvre Panel as shown here.

Colours Available

RED

BLUE

GREY

Sizes of Louver Panels
LP1 - 457 mm X 457 mm	LP2 - 457 mm X 610 mm
LP3 - 457 mm X 915 mm	LP6 - 457 mm X 1830 mm
