HIPPO BINS





Made from Polypropylene Copolymer

Strong rear lip for use with louvre panels or rails.
Strong heavy duty with rounded base, sides & stacking rim.
Resistant to most industrial solvents.
Can be stacked one on top of each other.
All bins with identification card holders.
Partitions available.
Stopper prevents stacked bins from shifting forward.
Rounded ergonomic design to give extra strength and sturdiness for storage.

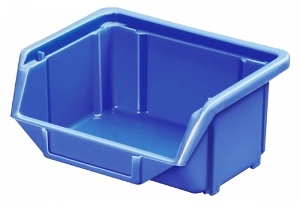

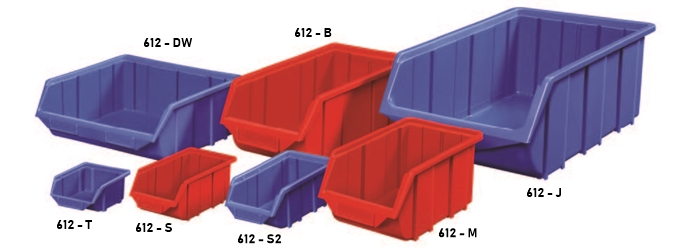

Art No : 612/T (Tiny)

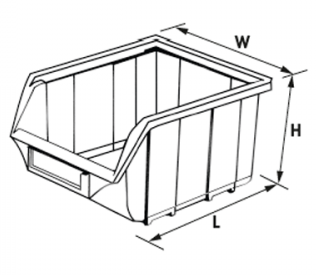

Outside Dimensions in mm : 100 (L) x 110 (W) x 53 (H)
Inside Dimensions in mm : 80 (L) x 90 (W) x 43 (H)
Effective Height in mm : 25
Standard Packing : 60 pcs. per ctn.
Volume Per Box CBM : 0.0235
Slots for Partition : NA
Colour : Red / Blue

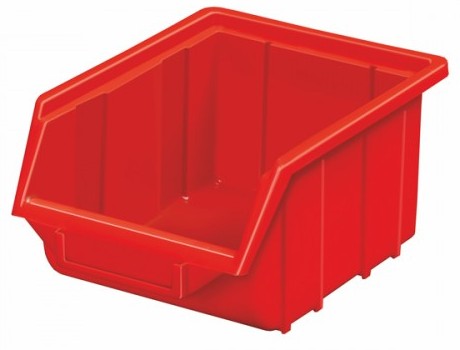

Art No : 612/S ( Small)
Outside Dimensions in mm : 150 (L) x 110 (W) x 75 (H)
Inside Dimensions in mm : 130 (L) x 90 (W) x 68 (H)
Effective Height in mm : 40
Standard Packing : 60 pcs. per ctn.
Volume Per Box CBM : 0.0820
Slots for Partition : NA
Colour : Red / Blue / Grey / Green / Yellow / Black

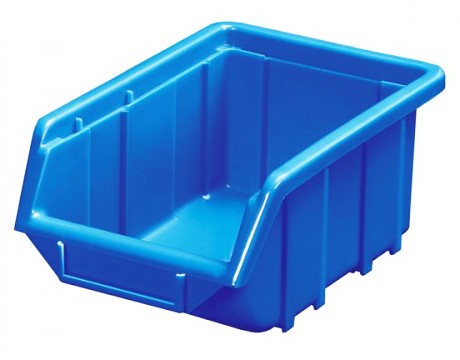

Art No : 612/S2 (Small)
Outside Dimensions in mm : 175 (L) x 115 (W) x 75 (H)
Inside Dimensions in mm : 150 (L) x 90 (W) x 64 (H)
Effective Height in mm : 40
Standard Packing : 40 pcs. per ctn.
Volume Per Box CBM : 0.0571
Slots for Partition : NA
Colour : Red / Blue

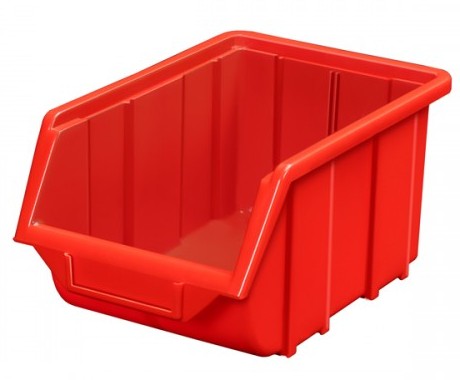

Art No. : 612/M (Medium)
Outside Dimnsions in mm : 250 (L) x 165 (W) x 125 (H)
Inside Dimensions in mm : 225 (L) x 132 (W) x 115 (H)
Effective Height in mm : 67
Standard Packing : 40 pcs. per ctn.
Volume Per Box CBM : 0.2084
Slots for Partition : 1 Slot for Vertical Partition.
Colour : Red / Blue

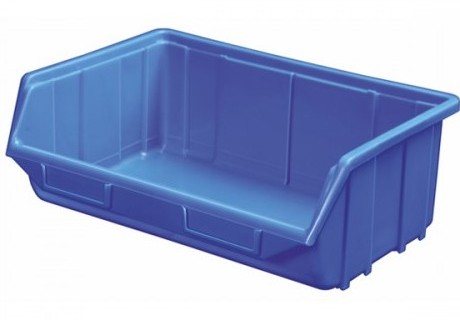

Art No : 612/DW (Double wide)
Outside Dimensions in mm : 250 (L) x 344 (W) x 125 (H)
Inside Dimensions in mm : 210 (L) x 312 (W) x 115 (H)
Effective Height in mm : 67
Standard Packing : 20 pcs. per ctn.
Volume Per Box CBM : 0.2208
Slots for Partition : 3 Slots for Vertical Partition.
Colour : Red / Blue

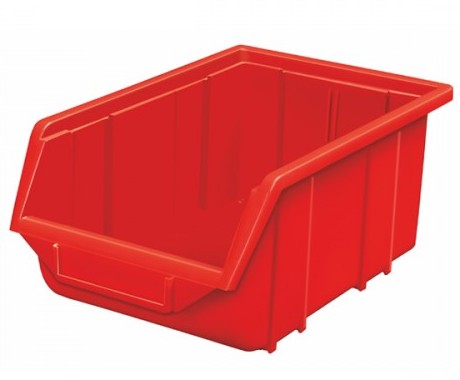

Art No : 612/B (Big)
Outside Dimensions in mm : 355 (L) x 220 (W) x 150 (H)
Inside Dimensions in mm : 330 (L) x 182 (W) x 138 (H)
Effective Height in mm : 85
Standard Packing : 10 pcs. per ctn.
Volume Per Box CBM : 0.1243
Slots for Partition : 1 Slot for Vertical Partition.
Colour : Red / Blue

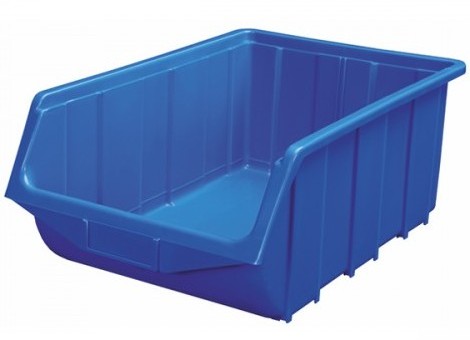

Art No : 612/J (Jumbo)
Outside Dimensions in mm : 515 (L) x 330 (W) x 200 (H)
Inside Dimensions in mm : 470 (L) x 295 (W) x 180 (H)
Effective Height in mm : 115
Standard Packing : 8 pcs. per ctn.
Volume Per Box CBM : 0.2677
Slots for Partition : 1 Slot for Vertical Partition.
Colour : Red / Blue


Top

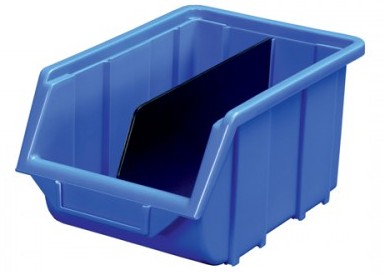

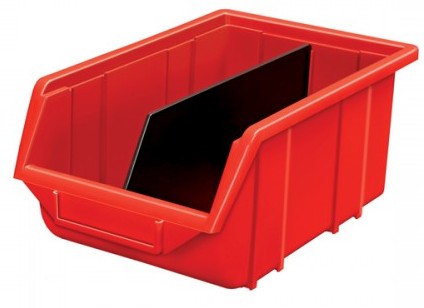

612 M 612 B
with 1 No. 612 M/DW VP with 1 No. 612 B VP

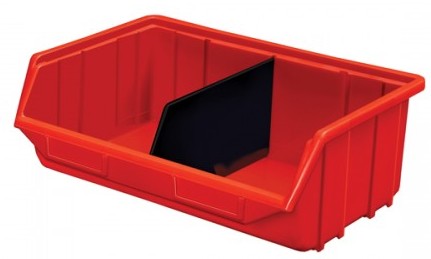

612 DW 612 J
with 1 No. 612 M/DW VP with 1 No. 612 J VP

HIPPO BIN PARTITIONS
Other accessories used to optimize Hippo Binís usage are bin partitions.

Vertical Partition for HIPPO Bin 612/M & Hippo Bin 612/DW.
Art No : 612/M/DW-VP
Standard Packing : 20 pcs. per ctn.

Vertical Partition for HIPPO Bin 612/B .
Art No : 612/B-VP
Standard Packing : 10 pcs. per ctn.

Vertical Partition for HIPPO Bin 612/B .
Art No : 612/B-VP
Standard Packing : 10 pcs. per ctn.

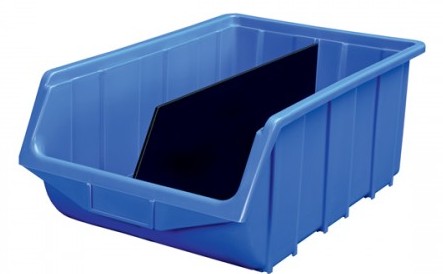

Vertical Partition for HIPPO Bin 612/J .
Art No : 612/J-VP
Standard Packing : 10 pcs. per ctn.






UNIVERSAL RAILS : ART NO: AUR-1

Art No : AUR -1
Dimension : 915mm (L) x 60mm (H)
Colour : Light Grey RAL 7035.

Universal Rails are made from 1.5 CRCA Steel duly powder coated in Light Grey RAL 7035 colour and can be mounted on any surface like walls, benches, slotted angle systems, stands, and trolleys.

These rails increase the flexibility of using different sizes of bins with ease and help in optimizing storage space.

Hippo Bins 612/T 612/S 612/S2 612/M 612/DW 612/B

Bins Per Rail

8 8 8 5 2 4

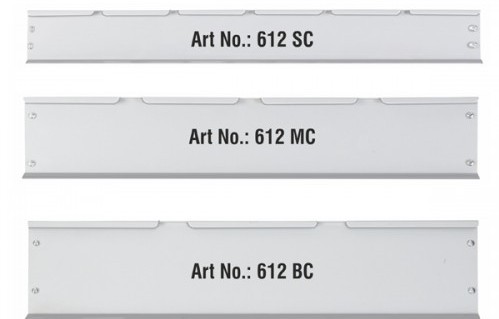

CHANNELS FOR HIPPO BINS

Art No.: 612 SC, 612 MC & 612 BC
Colour : Light Grey RAL 7035 Powder coated.

Channels are available in three sizes to suit Hippo Bins of
sizes 612/S, 612/M & 612/B.

Small channel 612 SC is made from 1mm CRCA Steel.


Medium channel 612 MC and Big channel 612 BC is made
from 1.5 mm CRCA Steel.


ART No Number of Channels per FSS Stand Size of Bin No. of Bins per Channel

612SC

12 612 / S 6

612MC

8 612 / M 4

612BC

7 612 / B 3
ART No Width Height Depth

612SC

665 mm 79 mm 18 mm

612MC

665 mm 130 mm 22 mm

612BC

665 mm 159 mm 22 mm

            Top

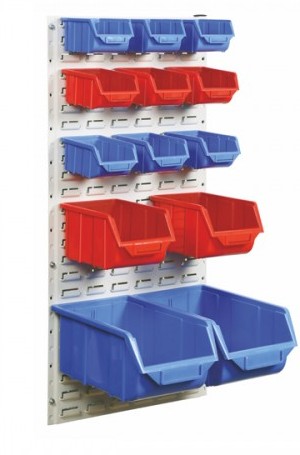

LOUVRE PANELS

Are manufactured from 1.5mm (T) CRCA Steel and Powder coated in Light Grey RAL 7035 colour. RHINO BINS can be mounted with ease in various combinations as listed below :

LOUVRE PANEL BINS COMBINATION CHART
ART No LP1 LP2 LP3 LP6
SIZE 457 x 457 457 x 610 457 x 915 457 x 1830

612/T 24 32 48 96
612/S 16 20 32 64
612/S2 16 20 32 64
612/M 6 8 12 24
612/DW 3 4 6 12
612/B 4 6 10 20

All Dimensions in mm approx.

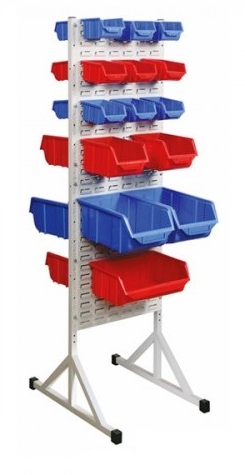

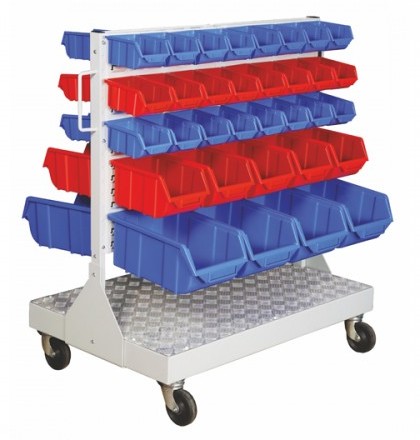

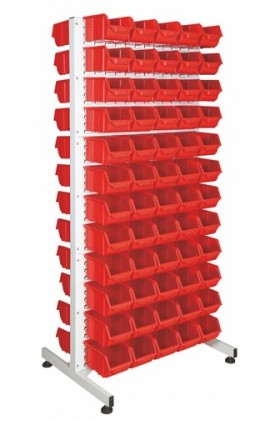

FOR HIPPO BINS ON FSS STANDS AND SHOP FLOOR TROLLEY,
