DOORS FOR PANDA SHELVING SYSTEMS




  • Lockable doors for panda shelving systems are available in two heights of 1275mm and 1875mm only.

  • Doors can be used with add on shelving units and can only be fitted on every alternate bay of shelving unit.
  • These doors are powder coated in the same color as per the shelves and roll posts to make it uniform in appearance.
  • Doors can also be used on back to back add on shelving units
  • Lockable doors secure and protect the stored contents from dust, damage and theft.
  • Doors are pivoted on two lintels, top lintel is mounted in line with the top shelf, the bottom lintel is mounted on the base level of the shelving unit due to which the usable height in the shelving system gets reduced .
  • Doors are modular in nature and can be added to the existing shelving systems.



ITEM

DESCRIPTION

ASUD 1275

Door set with lintel of 1275 high PANDA SHELVING UNIT including 16 sets of nuts & bolts

ASUD 1874

Door set with lintel of 1875 high PANDA SHELVING UNIT including 16 sets of nuts & bolts

ASUD 2375

Door set with lintel of 2375 high PANDA SHELVING UNIT including 16 sets of nuts & bolts

Top

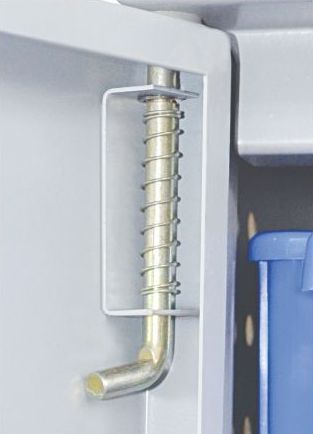

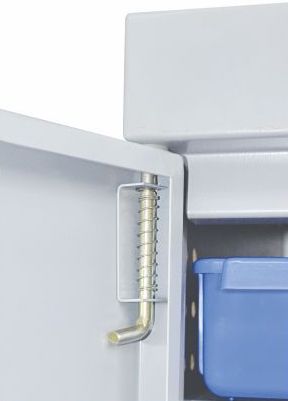

Spring Loaded Pivots

Doors are fitted easily with the help of pivots on the base support plate and spring loaded pivots on the top support plate.

To See Video Click Here

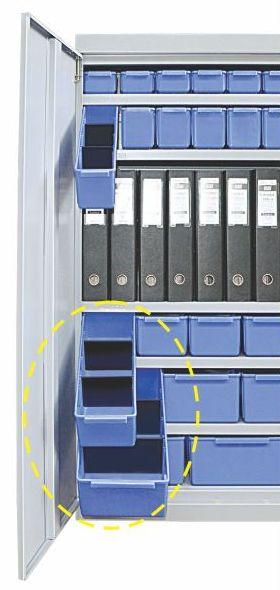

Parallel To Roll Post

Doors are flush mounted and pivot on the axis which is parallel to the diameter of the roll post.

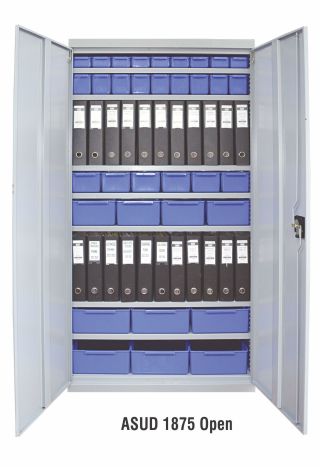

When Doors are opened there is clear access to the full width of the shelves.

All material stored on the shelves or all the bins are easily accessible .

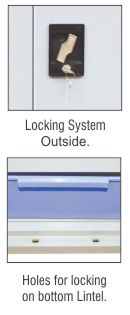

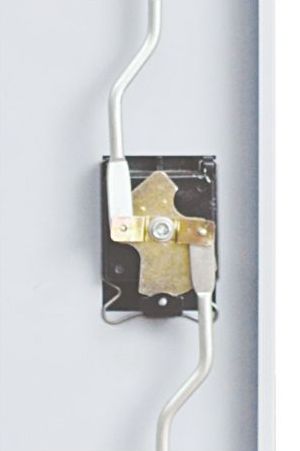

Locking System

The locking system has central shaft which when locked gets engaged in the holes provided on the top and bottom door lintels making the locking positive and tamper proof.

Industrial strength recessed locking handle and safety lock in the door ensure complete safety.



To See Video Click Here

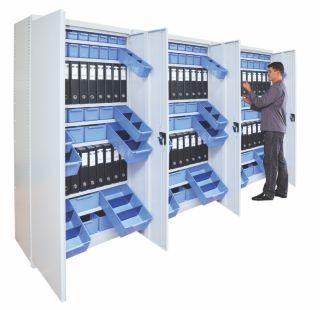

Independent shelving units with doors placed side by side. For add on shelving units, doors can be fitted on alternate bay of shelving unit.

Top
