ALKON PANDA SHELF BINS

PANDA SHELF BINS

MADE FROM POLYPROPYLENE COPOLYMER

Twenty Five standard sizes to suit 300 mm, 400mm, 450mm, 500mm and 600 mm deep shelving.
Designed to fit roll post shelving system.
Integral back stop for clear viewing of contents in bin.
Dividers are notched to ensure positive location within the bins.
PANDA Bins feature a small handle to allow maximum area of the front face for sticking identification labels.
The PANDA Bins use a unique design for added strength.
Colours Available : BLUE for Bins, BLACK for Dividers & GREY for Shelving

WE CREATE SPACE

BEFORE Old Type Cupboards & Shelvings	AFTER Alkon Panda Bins & Shelving Systems Installed
used at Fortis Hiranandani	created Space & Aesthetics

PANDA SHELF BIN DIMENSIONS

ART NO	OUTSIDE DIMENSIONS IN MM			INSIDE DIMENSIONS IN MM			No. Of Dividers with each bin
	Length	Width	Height	Length	Width	Height

PSB-301	315	100	60	293	86	55	3
PSB-302	315	100	110	293	86	105	2
PSB-303	315	150	110	293	136	105	2
PSB-304	315	220	135	293	206	130	2
PSB-305	315	300	135	293	282	130	2
PSB 306	315	300	185	293	282	180	2

PSB-401	415	100	60	393	86	55	3
PSB-402	415	100	110	393	86	105	2
PSB-403	415	150	110	393	136	105	2
PSB-404	415	220	135	393	206	130	2
PSB-405	415	300	135	393	282	130	2
PSB-406	415	300	185	393	282	180	2

PSB-451	465	100	60	443	86	55	3
PSB-452	465	100	110	443	86	105	3
PSB-453	465	150	110	443	136	105	3
PSB-454	465	220	135	443	206	130	3
PSB-455	465	300	135	443	282	130	3
PSB-456	465	300	185	443	282	180	3

PSB-501	515	100	60	493	86	55	3
PSB-502	515	100	110	493	86	105	3
PSB-503	515	150	110	493	136	105	3
PSB-504	515	220	135	493	206	130	3
PSB-505	515	300	135	493	282	130	3
PSB-506	515	300	185	493	282	180	3

PSB-601	615	100	60	593	86	55	3
PSB-602	615	100	110	593	86	105	3
PSB-603	615	150	110	593	136	105	3
PSB-604	615	220	135	593	206	130	3
PSB-605	615	300	135	593	282	130	3
PSB-606	615	300	185	593	282	180	3
All Dimensions in MM approximately

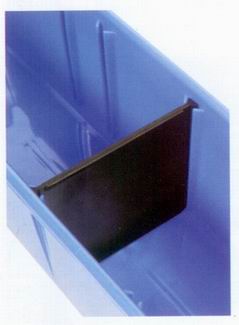

Roll Post Shelving System	Integral Back Stops allows viewing of contents	Snap- In-Divider Fitted in PANDA Shelf Bin

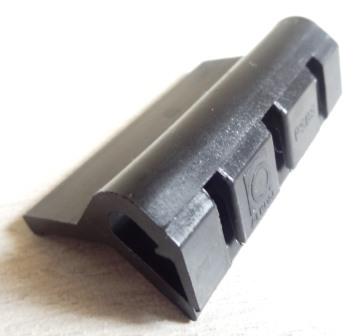

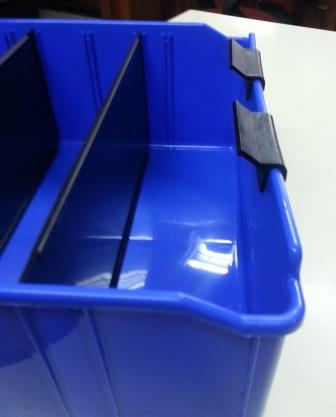

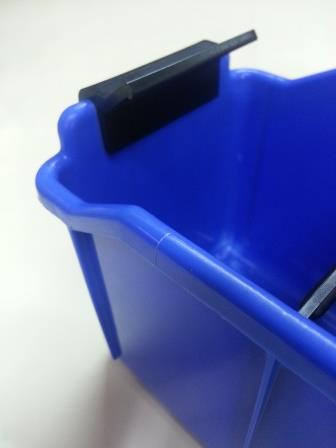

Single Stopper	Panda Bin Stopper	Double Stopper to be fitted on
	Art No PSBS	PSB-305, PSB 405, PSB 505 & PSB 605

Click Here to See how the Additional Stopper Works	Locks the Panda Bin from coming outside the shelf when you pull it out. Made from Strong Plastic Self locking on any size Panda Bin	Click Here to see how to fit the Stopper on the Panda Bin
